Quick Details

  • Type: Other, General
  • Condition: New
  • Application: Medical
  • Packaging Type: Strip Packing Machine
  • Packaging Material: Wood, wooden case
  • Automatic Grade: Automatic
  • Driven Type: Mechanical
  • Power: 0.55kw
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ANTAI
  • Model Number: DLL-240
  • Weight: 600kg
  • Dimension(L*W*H): 1450*600*1670mm
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Usage: packing

Packaging & Delivery

Packaging Details: Export Wooden Case, 1450*600*1670, 600kg
Delivery Detail: 50 days

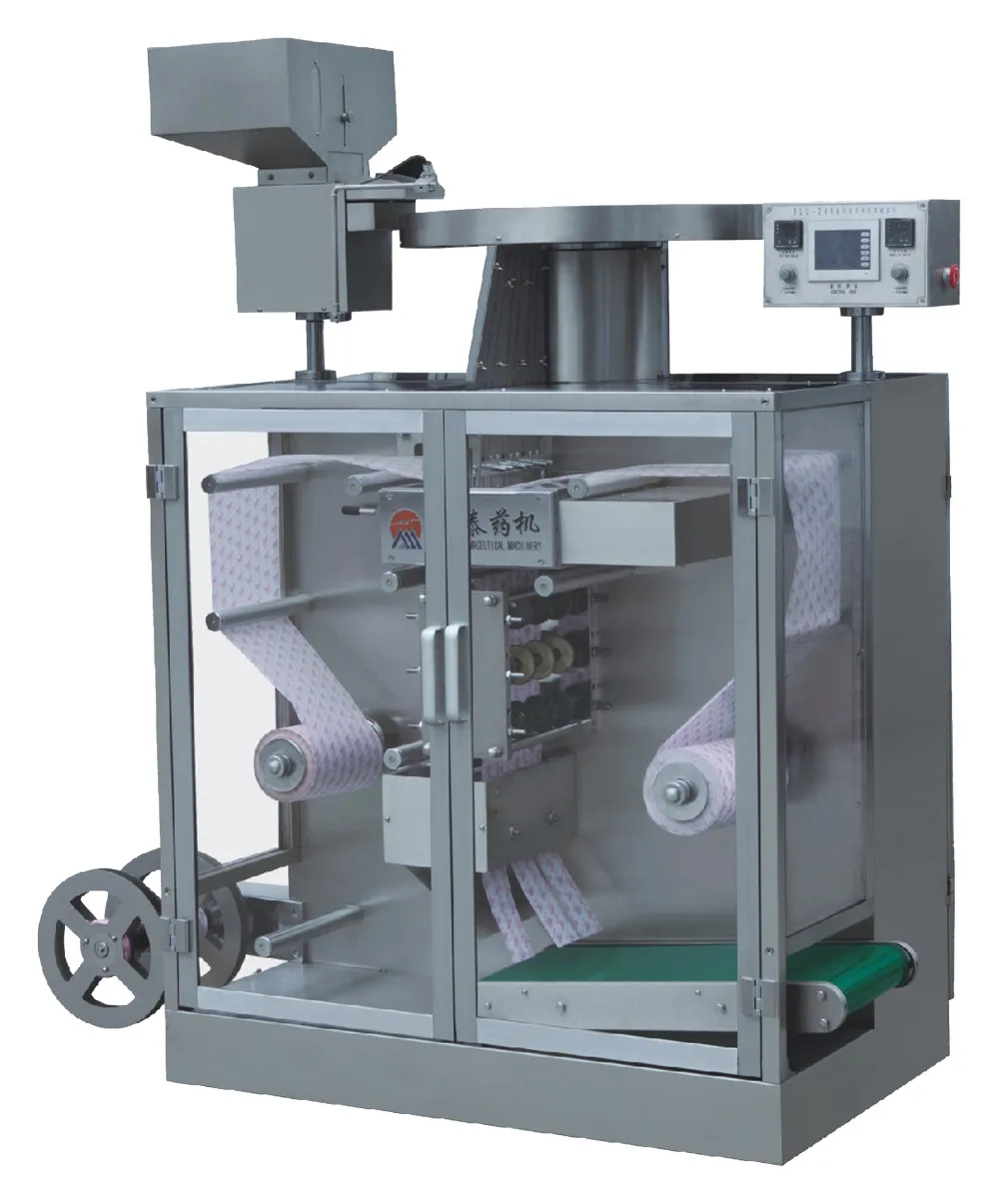

This model strip packing machine has PLC Human interface, frequency converter, higher automation, easy operation, beautiful style, full function, well performance and durability. It conforms to "GMP" standards.


1. Vibration feeder and crisp remover can effectively remove the powder and crisps inside  medicine.
2. Auto counting, horizontal perforation, slitting, waster-side cutting, printing batch number and auto punch etc functions can be achieved automatically in one process.
3. The diameter of heat pressing cam can be changed from 110 to 140 mm.
4. The rotation speed of the material controlling cam is equal to heat pressing cam, and the cams isodisperse is equal to medicament nest of heat pressing cam. Therefore it can have the distance from the plate edge the medicament nest and the one between the central medicament nest be equal.
5. The punch adpots electronic checking signal and PLC programs. It can change the number of granules at any time in the horizontal direction of the plate, making the user free to change the plates without replacing the moulds.
6. It can be equipped with an additional cursor tracking and registering plate system,  inking wheel printer to have the products printed beautifully and uniformly, upgrading  the products. The digit numbers are stamped more clearly.
Notes: we take part in the drafting out the JB/T10641-2006 for Soft Double Al Packing Machine that will be actualized on April 1st, 2007.
Speed of drum (rpm)7-15 stepless
Capacity (thousand pcs/h)20-60 thousand pcs/h
Max. Packing Width (mm)165mm (customized)
PVC for Medicine(mm)0.15-0.1*150
AL/PL Complex Film(mm)0.08*150
Hole die of Reel (mm)40-45
Electrothermal Power1kw*2
Main Motor (kw)0.55
Air Pressure (Mpa)0.4
Air supply≥0.1m3/min
Overall Dimensions(mm)1450*600*1670(L*W*H)
Weight (kg)600
