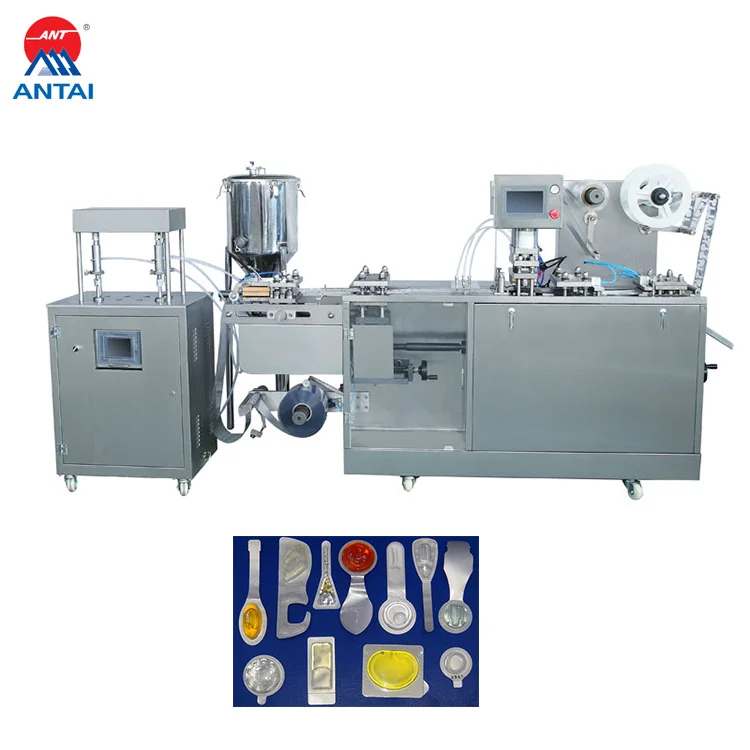

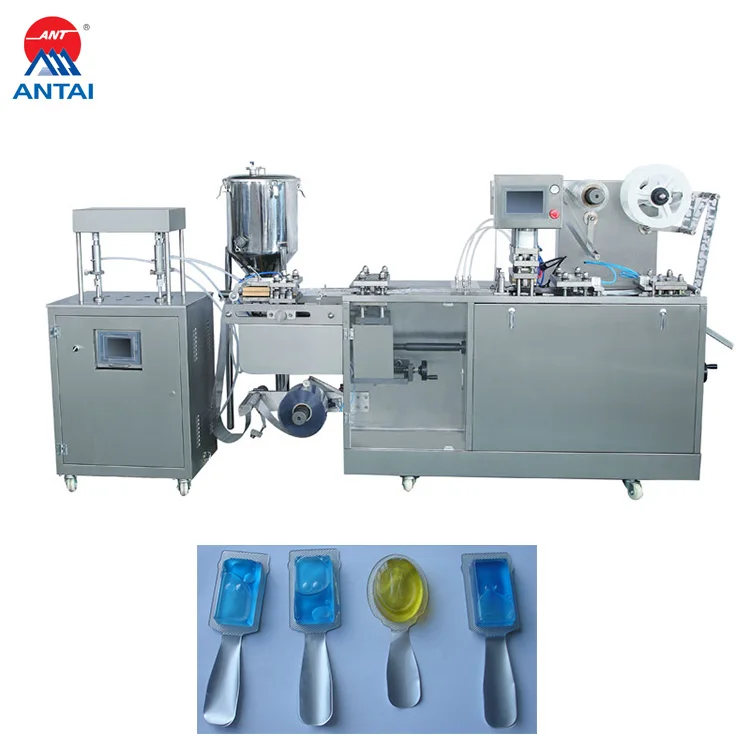

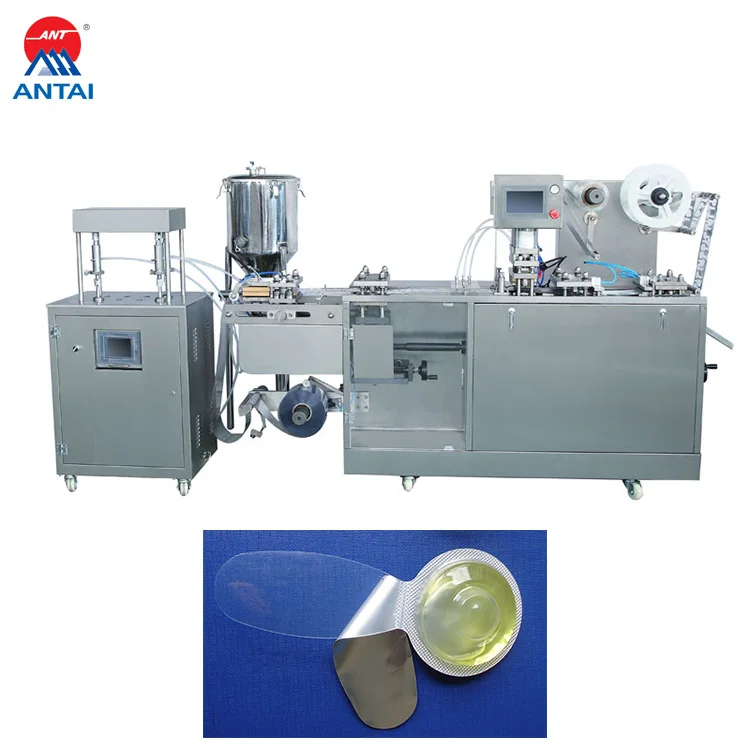

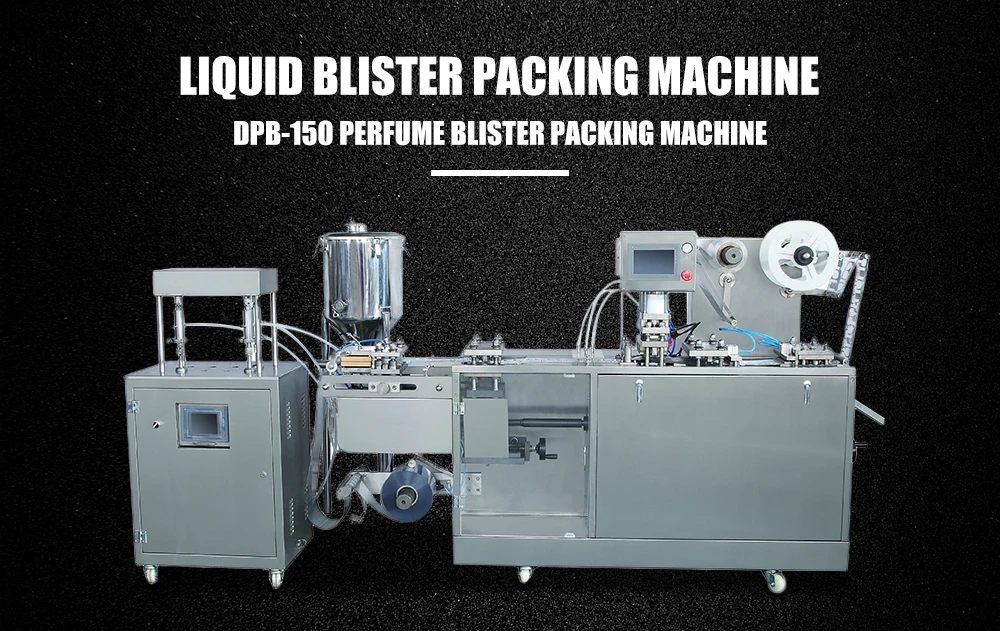

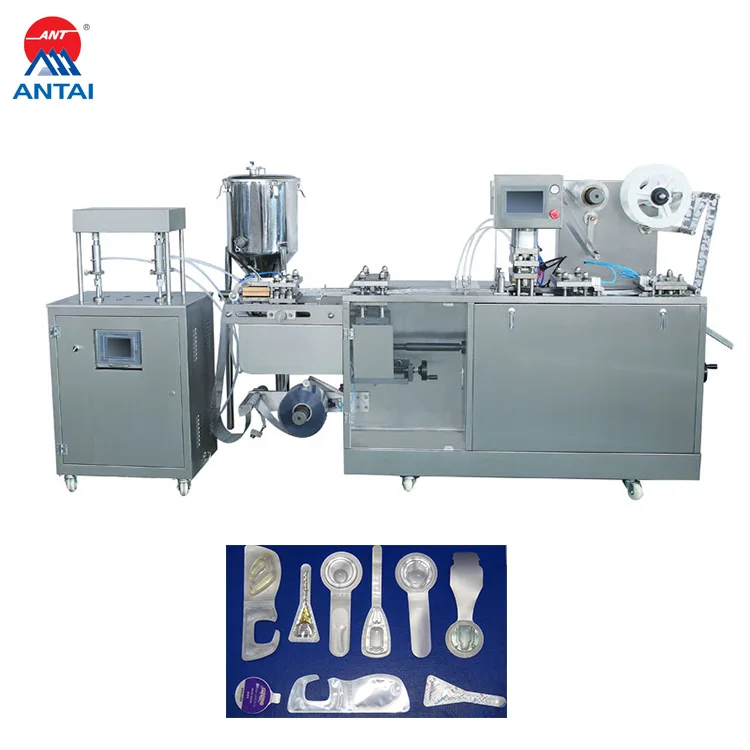

Automatic Membrane Air Freshener Liquid Blister Packing Machine For Perfume Pack

FOB Reference Price:Get Latest Price
$23,000.00 - $29,700.00 / Unit | 1 Unit/Units (Min. Order)
Power:
50Hz 3.6kw
Model Number:
DPB-150
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Blister Packaging Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
not available
Marketing Type:
Ordinary Product
Warranty of core components:
1 YEAR
Core Components:
MOTOR
Condition:
New
Application:
Liquid / Perfume
Automatic Grade:
Automatic
Driven Type:
mechanical
Voltage:
380V/220V
Place of Origin:
Zhejiang, China
Brand Name:
ANTAI
Dimension(L*W*H):
2300*560*1410(L*W*H)
Weight:
600kg
Certification:
CE SGS ISO GMP
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
Automatic
Cutting Frequency:
6-20Times/min
Max. Forming area and depth:
140*110*14mm
Stroke:
40-120mm
Standard Plate:
80*57mm
Air Pressure:
0.4-0.6Mpa
Air supply:
≥0.2 m3/min
PVC Hard Pieces:
0.150.5*150mm
PTP Aluminum Foil:
0.02-0.035*150mm
Dialysis Paper:
50-100g*150mm
Mould Cooling:
tap water or recycling water
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
export wooden case
Port
Shanghai or Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Main Technical Parameters
Cutting Frequency (Times/min)
6-20
Max. Forming area and depth (mm)
140*110*14
Stroke (mm)
40-120 (can be designed as customers requirements)
Standard Plate(mm)
80*57 (can be designed as customers requirements)
Air Pressure(Mpa)
0.4-0.6
Air supply
≥0.2 m³/min
Total Power
380V/220V 50Hz 3.6kw
Main Motor Power (kw)
1.1
PVC Hard Pieces(mm)
0.15-0.5*150
PTP Aluminum Foil(mm)
0.02-0.035*150
Dialysis Paper(mm)
50-100g*150
Mould Cooling
tap water or recycling water
Overall Dimensions(mm)
2300*560*1410(L*W*H)
Weight (kg)
800
Description:

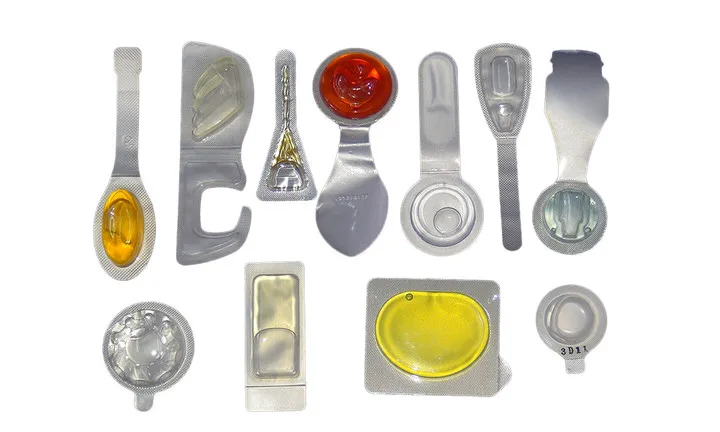

The equipment is an automatic packaging equipment integrated with machine, electricity and gas. It is a new packaging form that our scientific research personnel transform the advanced technology of food and medicine packaging into the field of cosmetic medicine. Filling products such as gel mask, shower gel, laundry ball, essence, perfume, cream, freeze-drying balls etc. The packaged products have beautiful appearance, lightweight, easy to carry, one-time use, and has more sense of value

Applicable Material: 1.PVC,PET,PS; 2.Aluminum foil (PTP), Aluminum plastic composite film, paper-plastic composite film, etc.

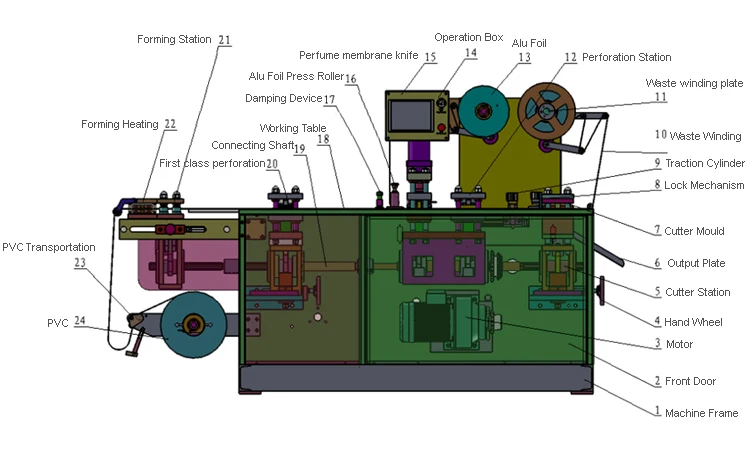

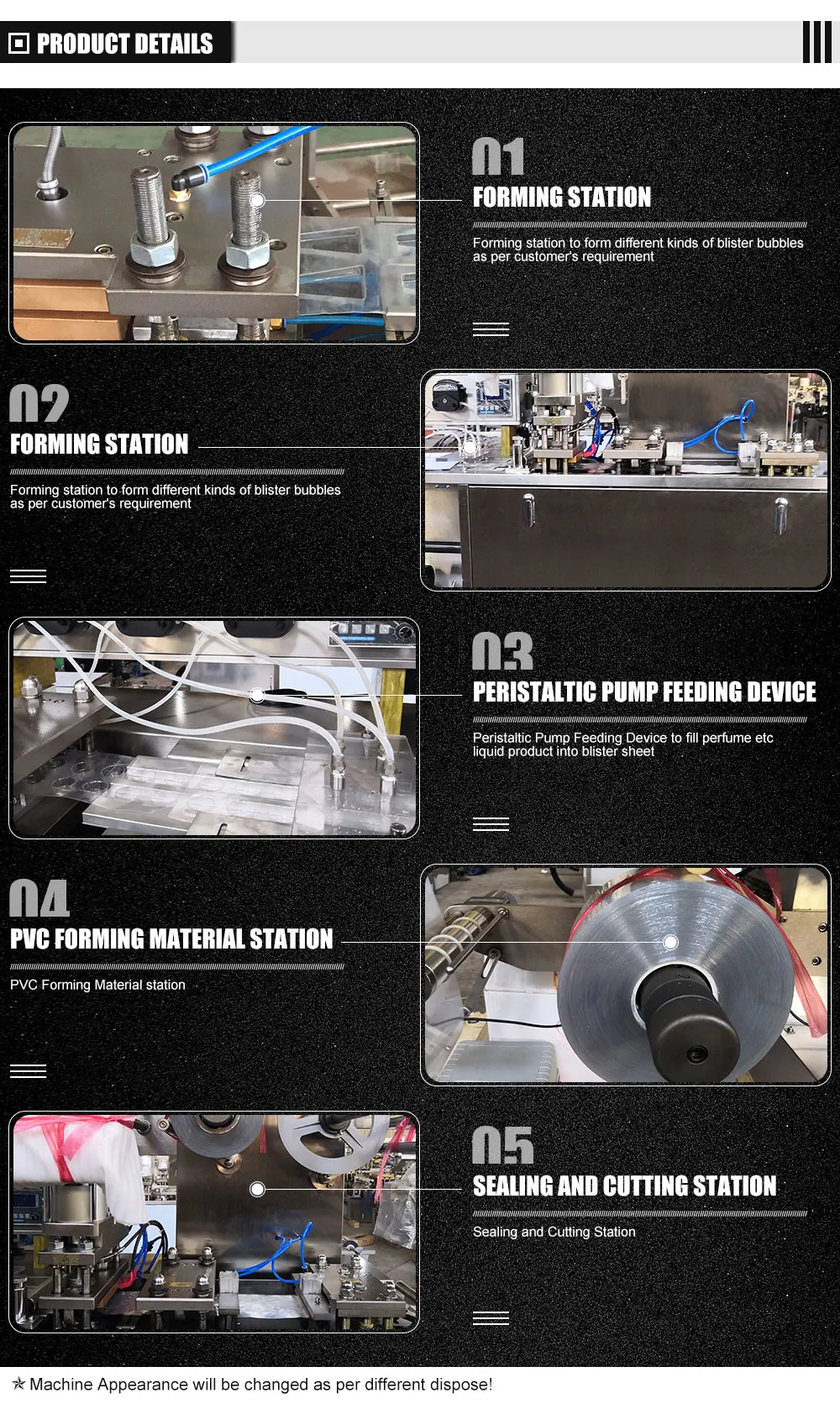

Basic Procedure: 1. Material unfolding and conveying 2, preheating 3, Air blow forming 4, filling 5, Heat-sealing 6, perforation, batch number 7, traction 8, punching output 9, waste recycle

Feeding Type: Special feeder (liquid, sauce, paste, cream type) is customized according to material properties.

Main Users: Focus on the coastal areas of Guangdong Province, Shanghai, Ningbo, Yiwu Yangtze River Delta and export to Singapore, Italy, Brazil, Malaysia, Indonesia, Taiwan, Hong Kong, the United States, Russia, Canada, Australia and other countries and regions. The market share of products has reached over 90% in China.
Q:Are you factory or a trading company?

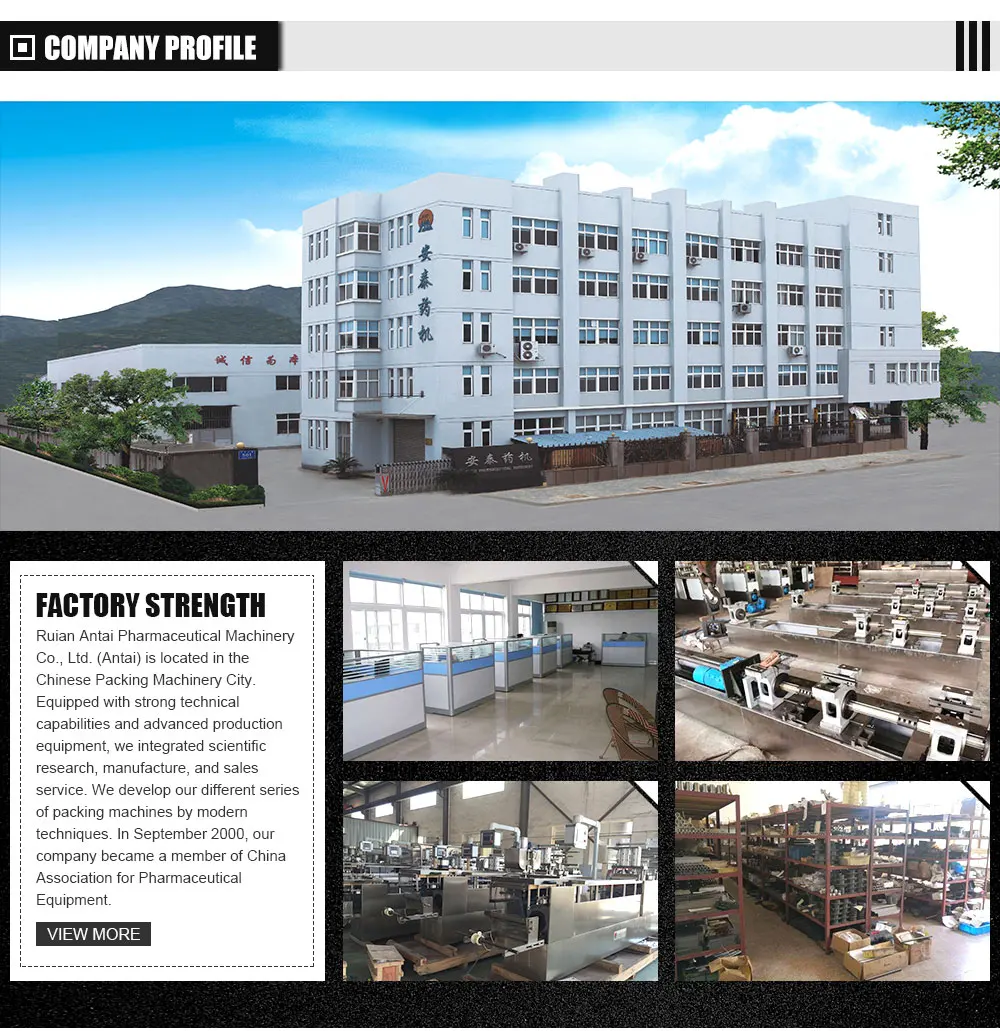

A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have many videos for reference.

Q: How can I know your machine is design for my products?
A: You can send us samples of your products and we will test it on machine.

Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
